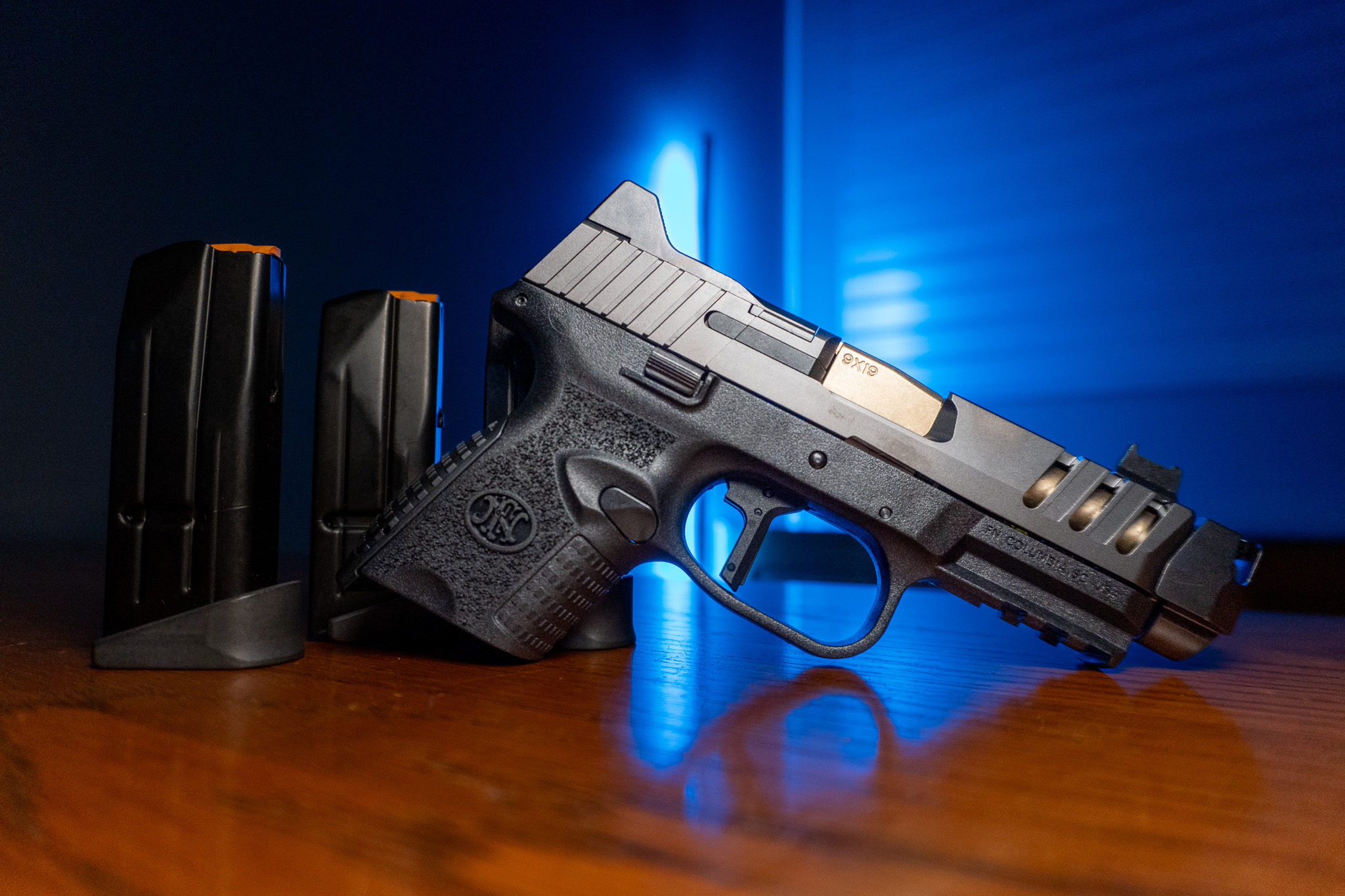

FN 509 CC Edge in 9mm
The FN 509 CC Edge is a compensated 9mm pistol. This one has a graphite PVD slide and a gold-colored TiN barrel, and it ships with three 10-round magazines. Overall length is 7.5″ and it weighs 25.5 oz.
Compensator and barrel
An auto-indexing FN compensator sits on a 4.2″ hammer-forged, target-crowned barrel. To field strip it, push the compensator in and twist it 90°. The barrel finish is gold-colored titanium nitride (TiN) PVD. The chamber and feed ramp are polished.
Slide, sights and optics
The slide is lightening-cut and finished in graphite PVD. It uses FN’s Low-Profile Optics Mounting System and is optics-ready. The front sight is a fiber-optic sight at co-witnessing height.
Frame, trigger and controls
The frame has a stippled texture and interchangeable backstraps. The slide stop is ambidextrous, and the magazine release is oversized, knurled and reversible. The magazine base pads are weighted, machined aluminum. The trigger is flat-faced, with a high-endurance striker. Trigger pull is 4.5-6.7 lb, about 5.6 lb.
Magazines and what comes with it
Capacity is 10+1. It comes with three 10-round magazines, a ballistic case, four MRD mounting plates, two interchangeable backstraps, an owner’s manual and a locking device.
Specs
| Manufacturer | FN |
|---|---|
| Model | 509 CC Edge |
| Variant | FN 509 CC EDGE NMS BLK/GRY 3X10 |
| SKU | 66-101350 |
| UPC | 845737015428 |
| Operation | Double-action, striker-fired |
| Caliber | 9mm |
| Capacity | 10+1 |
| Magazines | Three 10-round |
| Barrel | 4.2″ hammer-forged, target-crowned |
| Barrel Finish | Gold-colored titanium nitride (TiN) PVD |
| Slide Finish | Graphite PVD |
| Compensator | Auto-indexing FN compensator |
| Optics | FN Low-Profile Optics Mounting System |
| Sights | Co-witnessing height fiber-optic front sight |
| Trigger | Flat-faced; 4.5-6.7 lb (about 5.6 lb) |
| Overall Length | 7.5″ |
| Height | 4.8″ |
| Width | 1.35″ |
| Sight Radius | 5.41″ |
| Twist Rate | 1:10″ RH |
| Weight | 25.5 oz |
Buying and shipping
Buy it in our Humble, TX store or online. Guns bought online ship to the licensed dealer (FFL) you pick, never to your home. No California sales. Questions? Call us at 346-861-3404.
